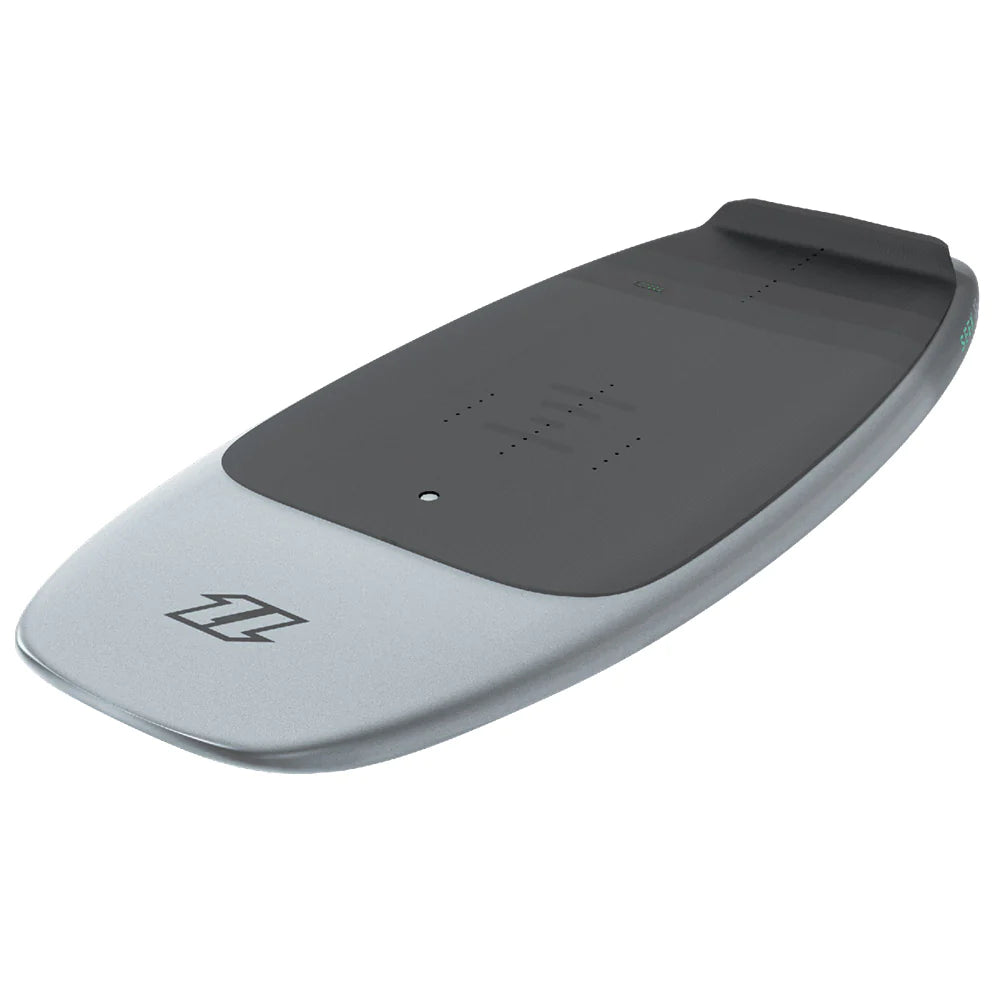

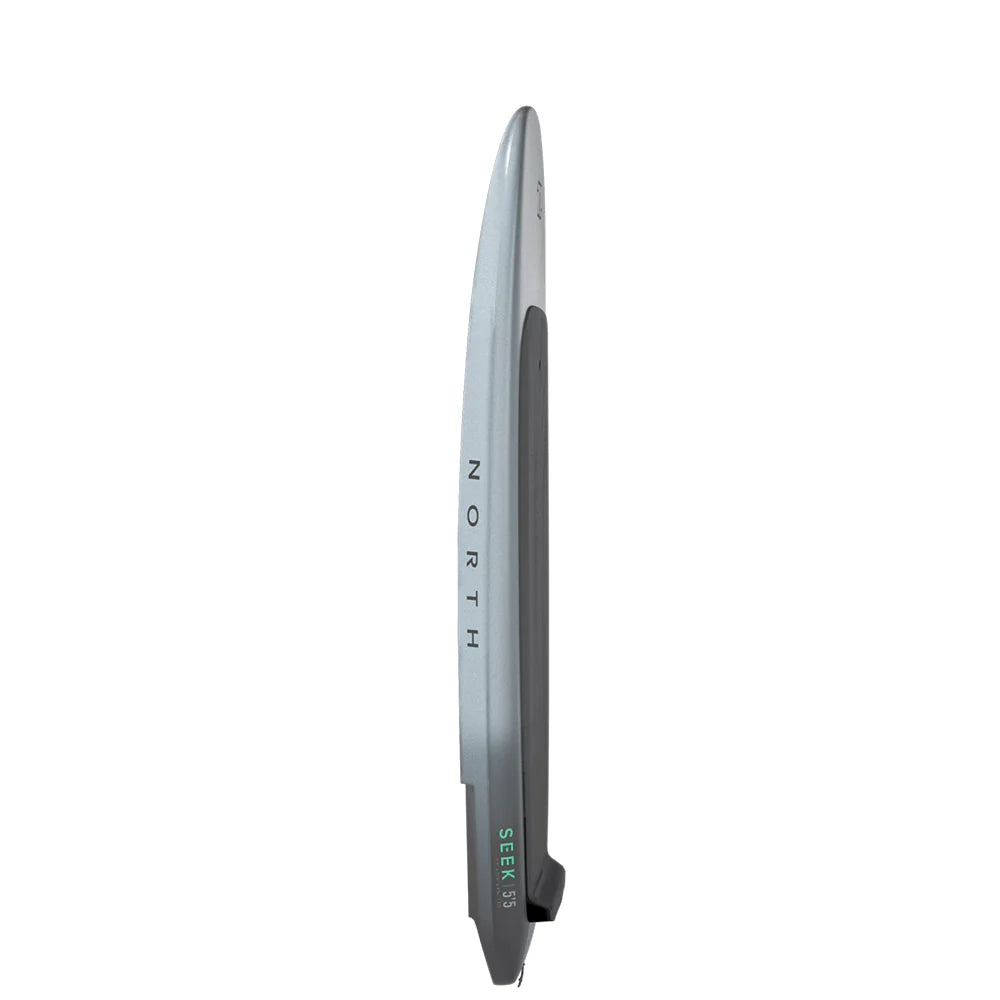

2021 NORTH SEEK 5'5" 97L WING FOIL BOARD
2021 NORTH SEEK 5'5" 97L WING FOIL BOARD
The Seek is North's Wing/Sup foilboard. The board has a low profile shape, a double concave bottom shape, and a steep bevelled rails. This board has easy take-off and forgiving touchdown recovery. The hybrid carbon construction is light and durable for carrying to and from the beach, and also allows for great maneuverability.
Let the Seek wing-foil board take you places you’ve never been. Upwind, downwind, ocean roller or lake. Wherever you fly, whatever adventure you take. Engineered for performance. Early take-offs. Effortless touchdown recovery. The Seek provides you with an intuitive and direct connection to your hydrofoil, becoming an extension of you – the rider. It has an ultra-lightweight yet durable hybrid carbon construction that is stiff, responsive and maneuverable and it’s precisely-balanced distribution of volume means that no matter whether you’re in displacement mode, skimming or foiling, your stance remains in the same position - no shuffling required. Because every movement counts.
Floater, sinker or somewhere in between – there’s a board size and volume for every start need. And no matter what, you won’t look like a kook carrying your setup to the water. The recessed carry handle will keep your Seek, Sonar and dignity safe.
NEW FREE-V AND FREE FOIL STRAP INSERTS
Additional off-centre strap inserts allow you to customize your stance with 5 different positioning options for each strap - or go strapless. (Straps sold separately)
GORE™ WATERPROOF 2-WAY VENT
The EPS core of a high volume board is affected by extreme temperature changes. To prevent air pressure build-up we’ve installed a two-way GORE™ Protective Vent on the top deck. This allows air to pass in and out of the board, while preventing water from entering. The vent is factory-fitted and does not require any adjustment.
DOUBLE CONCAVE DECK
There is a significant amount of concave in the deck that works to position the rider lower and makes the board more stable to ride. The concave puts all the volume outside on the rails, so the centre of the board is the low point. It creates the best potential for balancing and is the most comfortable and responsive shape to stand on.
HYBRID CARBON TECHNOLOGY
Lighter weight construction for stiffness, manoeuvrability and glide. The stiffer the board, the better it will pump and the more responsive it feels. A light yet durable epoxy composite laminate, with a balanced carbon and e-glass fibre layup is wrapped around an EPS core. High-density closed cell PVC reinforcement around the foil track mount, leash plug and foot strap inserts spreads the load. An ultra-lightweight double bamboo reinforcement layer under the standing area adds greater impact resistance and rigidity.
INTEGRATED PVC STRUCTURAL STRINGER SYSTEM
The DropBox foil mounting tracks are embedded into a high-density closed-cell PVC block. Two high-density PVC stringers are glued to each side of this block, distributing the load lengthwise, and the full system connects the top and bottom laminate skins for maximum support.
DROPBOX ADJUSTABLE FOIL MOUNTING TRACK
Speed-dial your foil setup. Simply drop your foil pre-assembled with screws and t-nuts into the track, slide it backwards, then tighten the screws to fasten. Our unique structurally-integrated DropBox has a longer track for a wider adjustment range, allowing you to precision-tune the foil set up for your rider weight. A measurement guide next to the track aids correct positioning. Industry-standard 90mm track spacing means the DropBox is compatible with most foil systems.
DEEP-V DOUBLE NOSE CONCAVE
The nose spine and double-concave in the underside of the nose, combined with the steep bevelled rails, helps with touchdown recovery. The V-shape in the bottom contour of the board breaks the water surface on touch down, so the board dives in gently and releases quickly, without sticking. The V also helps to funnel air under the board, which helps it to release faster.
STEEP BEVELLED RAILS
Help with touchdown recovery and water release.
CORDUROY DECK GRIP WITH TACTILE & VISUAL STANCE REFERENCE
For a more intuitive and direct connection to your foil, grippy longitudinal corduroy with centre-line ridge allows fast, easy tactile foot placement. Tail kickpad with cutouts on the Swell for your feet while prone paddling. Transverse markers on the deckpad provide a visual reference, giving you confidence to adjust.
INTEGRATED UNDERSIDE CARRY HANDLE
Recessed carry handle on the underside of the foil board allows balanced load handling with or without the foil attached and leaves your other hand free to carry your wing or paddle down to the water.
COMPACT OUTLINE WITH GENEROUS NOSE VOLUME
The shorter the board, the more effective it is for pumping, the less swing weight, and the more aerodynamic and maneuverable it is when riding up on the foil. The reverse shear of the deck and downward curve in the nose allows for greater control over the board, even when fully submerged on water starts. The extra nose volume was added on top so the boards could be cut short without losing stability and allows you to ride a board 6” shorter. The volume in the nose also stops you nose-diving when you’re paddling into a wave and helps keep the water off the concave deck.
CUTAWAYS AND TAPERED TAIL
The sharp release edge on the tail allows for an earlier take-off, while the cutaways and the way the tail tapers reduces the volume in the tail, helping to bring the board’s centre of buoyancy forward, right underneath your stance. Having the centre of buoyancy directly underneath your stance is essential for finding that sweet spot on the board where you can remain without shifting your weight back and forward. The wedged tail shape reduces the overall length and improves the pumpability of the foil. Every movement counts to staying up on the foil.
|NAME||VOLUME||WIDTH||THICKNESS||TAIL SHAPE||NOSE SHAPE||BOTTOM
|SEEK 4'10||57||23"||4"||CUTAWAY||ROUNDED SQUARE, HIGH VOLUME||DEEP-V / DOUBLE CONCAVE TO FLAT||STEEP BEVELLED||SINKER||1500R / 1650 /1850R /2200R /HA1250 /HA1450||CF72/85, AF72/85|
|SEEK 5'1||77||25 1/2"||4 1/2"||CUTAWAY||ROUNDED SQUARE, HIGH VOLUME||DEEP-V / DOUBLE CONCAVE TO FLAT||STEEP BEVELLED||KNEE-START||1500R / 1650 / 1850R / 2200R / HA1250 / HA1450||CF72/85, AF72/85|
|SEEK 5'5||97||27 1/2"||4 13/16"||CUTAWAY||ROUNDED SQUARE, HIGH VOLUME||DEEP-V / DOUBLE CONCAVE TO FLAT||STEEP BEVELLED||FLOATER||1500R / 1650 / 1850R / 2200R / HA1250 / HA1450||CF72/85, AF72/85|
|SEEK 5'9||117||29 1/2"||5 1/8"||CUTAWAY||ROUNDED SQUARE, HIGH VOLUME||DEEP-V / DOUBLE CONCAVE TO FLAT||STEEP BEVELLED||FLOATER||1500R / 1650 / 1850R / 2200R / HA1250 / HA1450||CF72/85, AF72/85|
|SEEK 6'4||130||30||5 1/8||CUTAWAY||ROUNDED SQUARE, HIGH VOLUME||DEEP-V / DOUBLE CONCAVE TO FLAT||STEEP BEVELLED||FLOATER||1500R / 1650 / 1850R / 2200R / HA1250 / HA1450|
